性能特点  Performance Features

◆ 采用高强度机身构造，变形量小，精度高。
◆ 滑块采用四角八面导路，可承载较大的偏心负载，确保冲压精度的长期、稳定保持。
◆ 滑块导轨采用“高频淬火”十 “导轨研磨工艺”，磨损小、精度高、精度保持时间长、提高模具使用寿命。
◆ 采用强制稀油循环润滑装置：节能、环保、设有自动报警功能，具有更好的流行性及散热性，润滑效果更好。
◆ 曲轴采用高强度合金材质42CrMo，强度比45钢提高了1.3倍，使用寿命更长。
◆ 铜套采用锡磷青铜ZQSn10-1，强度比普通BC6黄铜提高了1.5倍采用高灵敏液压过载保护装置，可有效保护冲床和模具使用寿命。
◆ 标配日本SMC调压阀、油雾器、空气过滤器。
◆ 标配触摸屏、西门子电机。
◆ 可选配模垫（气垫）。

◆ Adopting high-strength body structure, with small deformation and high accuracy.
◆ The slider adopts a four corner and eight sided guide path, which can bear large eccentric loads, ensuring long-term and stable maintenance of stamping accuracy.
◆ The slide rail adopts the "high-frequency quenching" and "rail grinding process", which has low wear, high accuracy, long accuracy retention time, and improves the service life of the mold.
◆ Adopting a forced thin oil circulation lubrication device: energy-saving, environmentally friendly, equipped with automatic alarm function, with better popularity and heat dissipation, and better lubrication effect.
◆ The crankshaft is made of high-strength alloy material 42CrMo, which is 1.3 times stronger than 45 steel and has a longer service life.
◆ The copper sleeve adopts tin phosphorus bronze ZQSn10-1, which has a strength 1.5 times higher than ordinary BC6 brass. It adopts a highly sensitive hydraulic overload protection device, which can effectively protect the service life of the punching machine and mold.

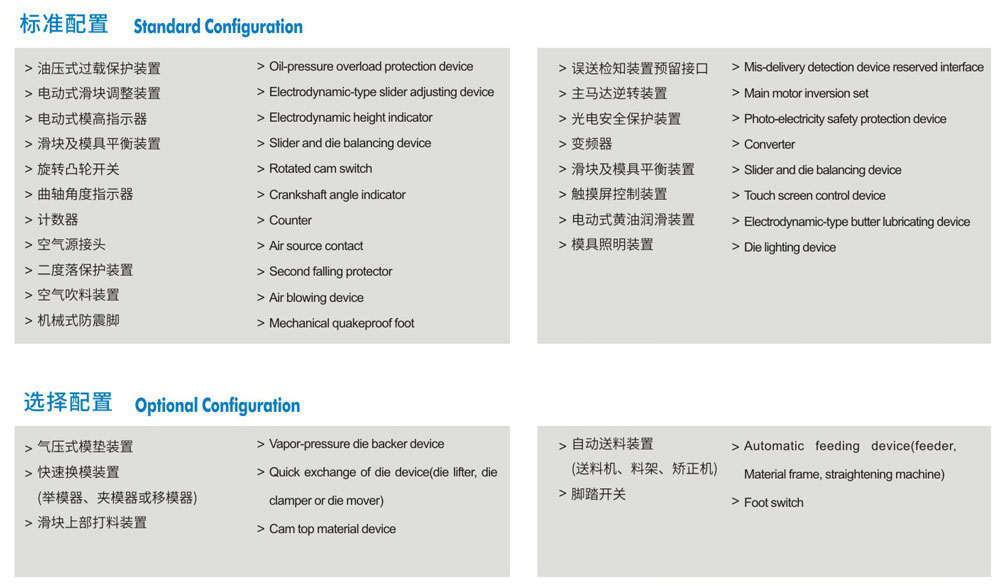

◆ Standard Japanese SMC pressure regulating valve, oil mist filter, and air filter.
◆ Standard touch screen and Siemens motor.
◆ Optional mold pad (air cushion).
