性能特点 Performance Features
◆ 机身构造采用（顶座+中台身+底座）三部分组成，最后用补强杆固锁连接为一体。
◆ 机身、滑块高刚性（变形量）1/9000：变形小，精度保持时间长。
◆ 传动采用多连杆构造，可以实现冲压速度变慢，快速返程，可以提高效率，冲压制品精度高（一般用于拉伸、冲孔、切断）
◆ 600吨以下冲床采用气动湿式离合刹车器（一体式），800吨以上的冲床采用干式离合刹车器（分体式）。
◆ 滑块采用四角八面导路，可承载较大的偏心负载，确保冲压精度的长期、稳定保持。
◆ 滑块导轨采用“高频淬火”+“导轨研磨工艺”：磨损小、精度高、精度保持时间长、提高模具使用寿命。
◆ 采用强制稀油循环润滑装置：节能、环保、设有自动报警功能，可通过调节油量大来提高冲压次数。
◆ 曲轴采用高强度合金材质42CrMo，强度比45钢提高了1.3倍，使用寿命更长。
◆ 铜套采用锡磷青铜ZQSn10-1，强度比普通BC6黄铜提高了1.5倍。
◆ 采用高灵敏液压过载保护装置，可有效保护冲床和模具使用寿命。
◆ 标配德国西门子触摸屏、西门子电机。
◆ 可选配模垫（气垫）。
◆ 可选配移动台车。

◆ The body structure is composed of three parts (top seat, middle platform body, and base), and finally connected with a reinforcing rod to form a solid lock.
◆ The body and slider have high rigidity (deformation) of 1/9000: small deformation and long accuracy retention time.
◆ Transmission using multi-link structure, can realize the stamping speed slows down, fast return, can improve efficiency, stamping products with high precision (generally used for stretching, punching, cutting)
◆ Punches below 600 tons use pneumatic wet clutch brakes (integrated), while punch presses above 800 tons use dry clutch brakes (split).
◆ The slider adopts a four corner and eight sided guide path, which can bear large eccentric loads, ensuring long-term and stable maintenance of stamping accuracy.
◆ The slider rail adopts the "high-frequency quenching" and "rail grinding process": low wear, high precision, long accuracy retention time, and improved mold service life.
◆ Adopting a forced thin oil circulation lubrication device: energy-saving, environmentally friendly, equipped with automatic alarm function, with better popularity and heat dissipation, and better lubrication effect.
◆ The crankshaft is made of high-strength alloy material 42CrMo, which is 1.3 times stronger than 45 steel and has a longer service life.
◆ The copper sleeve adopts tin phosphorus bronze  ZQSn10-1, which has a strength 1.5 times higher than ordinary BC6 brass. It adopts a highly sensitive hydraulic overload protection device, which can effectively protect the service life of the punching machine and mold.

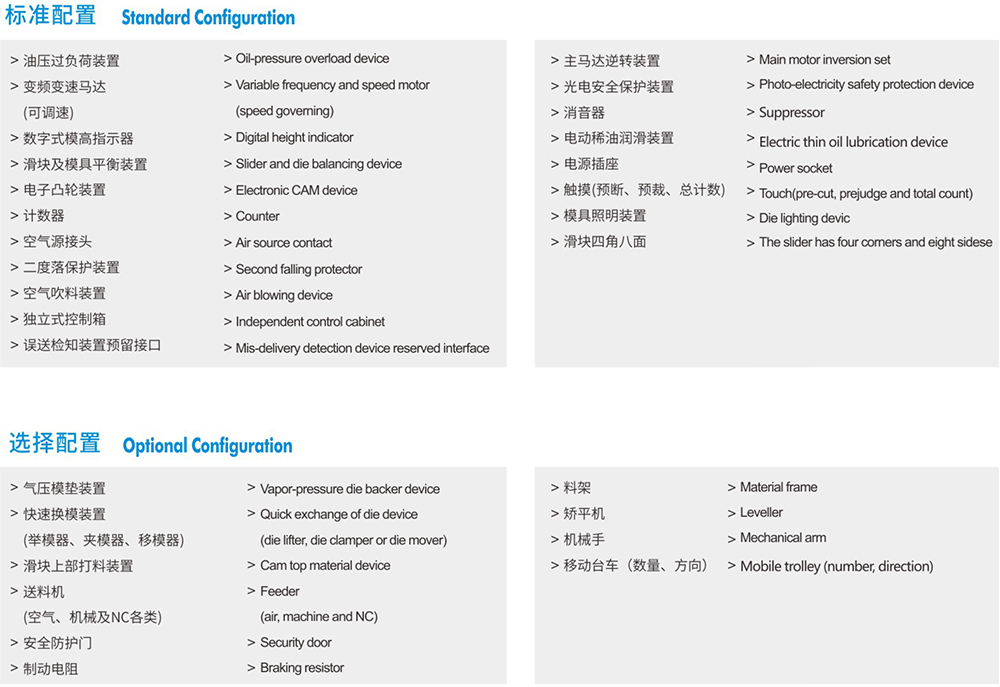

◆ Standard configuration: German Siemens touch screen and Siemens motor.
◆ Optional mold pad (air cushion).
◆ Optional mobile trolley.
